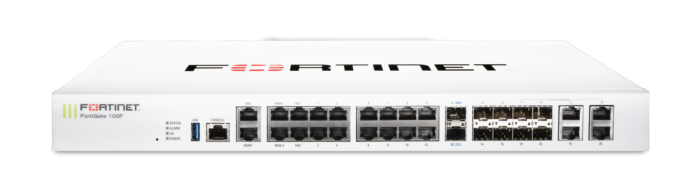

 | FortiGate 100F | FortiGate 101F | |
| GE RJ45 Ports | 12 | 12 | |
| GE RJ45 Management/HA/DMZ Ports | 1 / 2 / 1 | 1 / 2 / 1 | |
| GE SFP Slots | 4 | 4 | |
| 10GE SFP+ FortiLink Slots (default) | 2 | 2 | |
| GE RJ45 WAN Ports | 2 | 2 | |
| GE RJ45 or SFP Shared Ports | 4 | 4 | |
| Internal Storage | — | 1x 480 GB SSD | |
| USB Port | 1 | ||
| RJ45 Console Port | 1 | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 20 / 18 / 10 Gbps | ||
| Firewall Latency (64 byte UDP packets) | 4.97 μs | ||
| Firewall Throughput (Packets Per Second) | 15 Mpps | ||
| Concurrent Sessions (TCP) | 1.5 Million | ||
| New Sessions/Second (TCP) | 56,000 | ||
| Firewall Policies | 10,000 | ||
| IPsec VPN Throughput (512 byte) | 11.5 Gbps | ||
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 | ||
| Client-to-Gateway IPsec VPN Tunnels | 16,000 | ||
| SSL-VPN Throughput | 1 Gbps | ||
| Concurrent SSL-VPN Users (Recommended Maximum) | 500 | ||
| SSL Inspection Throughput (IPS, avg. HTTPS) | 1 Gbps | ||
| SSL Inspection CPS (IPS, avg. HTTPS) | 1,800 | ||
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 135,000 | ||
| Application Control Throughput (HTTP 64K) | 2.2 Gbps | ||
| Virtual Domains (Default / Maximum) | 10 / 10 | ||
| High Availability Configurations | Active-Active, Active-Passive, Clustering | ||
| IPS Throughput | 2.6 Gbps | ||
| NGFW Throughput | 1.6 Gbps | ||
| Threat Protection Throughput | 1 Gbps | ||
