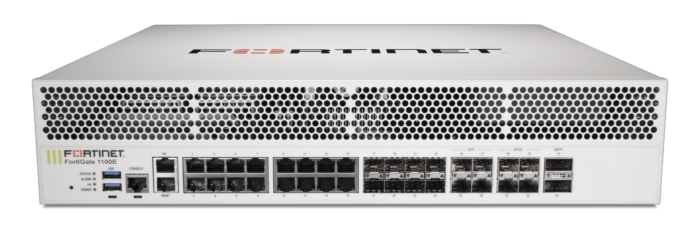

FortiGate 1100E/-DCFortiGate 1101E
Hardware Accelerated 40 GE QSFP+ Slots2
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots4
Hardware Accelerated 10 GE SFP+ Slots / GE SFP Slots4
Hardware Accelerated GE SFP Slots8
Hardware Accelerated GE RJ45 Ports16
GE RJ45 Management / HA Ports2
Included Transceivers2x SFP (SX 1 GE)
Onboard Storage2x 480 GB SSD
USB Ports (Client / Server)1 / 2
RJ45 Console Port1
Firewall Throughput (1518 / 512 / 64 byte UDP packets)80 / 80 / 45 Gbps
Firewall Latency (64 byte UDP packets)2.76 μs
Firewall Throughput (Packets Per Second)67.5 Mpps
Concurrent Sessions (TCP)8 Million
New Sessions/Second (TCP)500,000
Firewall Policies100,000
IPsec VPN Throughput (512 byte)48 Gbps
Gateway-to-Gateway IPsec VPN Tunnels20,000
Client-to-Gateway IPsec VPN Tunnels100,000
SSL-VPN Throughput8.4 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)10,000
SSL Inspection Throughput (IPS, avg. HTTPS)10.0 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)6,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)780,000
Application Control Throughput (HTTP 64K)26 Gbps
Virtual Domains (Default / Maximum)10 / 10
High Availability ConfigurationsActive-Active, Active-Passive, Clustering
IPS Throughput12.5 Gbps
NGFW Throughput9.8 Gbps
Threat Protection Throughput7.1 Gbps
