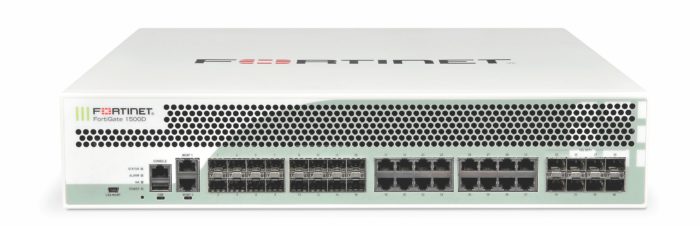

 | FortiGate 1500D | FortiGate 1500DT | |
| Hardware Accelerated 10 GE SFP+ / GE SFP Slots | 8 | 4 | |
| Hardware Accelerated GE SFP Slots | 16 | ||
| Hardware Accelerated 10 GE RJ45 Ports | — | 4 | |
| Hardware Accelerated GE RJ45 Ports | 16 | ||
| GE RJ45 Management / HA Ports | 2 | ||
| Included Transceivers | 2x SFP+ (SR 10GE) | ||
| Onboard Storage | 2x 240 GB SSD | ||
| USB Ports (Client / Server) | 1 / 1 | ||
| RJ45 Console Port | 1 | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 80 / 80 / 55 Gbps | ||
| Firewall Latency (64 byte UDP packets) | 3 μs | ||
| Firewall Throughput (Packets Per Second) | 82.5 Mpps | ||
| Concurrent Sessions (TCP) | 12 Million | ||
| New Sessions/Second (TCP) | 300,000 | ||
| Firewall Policies | 100,000 | ||
| IPsec VPN Throughput (512 byte) | 50 Gbps | ||
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 | ||
| Client-to-Gateway IPsec VPN Tunnels | 100,000 | ||
| SSL-VPN Throughput | 4 Gbps | ||
| Concurrent SSL-VPN Users (Recommended Maximum) | 10,000 | ||
| SSL Inspection Throughput (IPS, avg. HTTPS) | 5.7 Gbps | ||
| SSL Inspection CPS (IPS, avg. HTTPS) | 3,100 | ||
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 800,000 | ||
| Application Control Throughput (HTTP 64K) | 16 Gbps | ||
| Virtual Domains (Default / Maximum) | 10 / 250 | ||
| High Availability Configurations | Active-Active, Active-Passive, Clustering | ||
| IPS Throughput | 13 Gbps | ||
| NGFW Throughput | 7 Gbps | ||
| Threat Protection Throughput | 5 Gbps | ||
