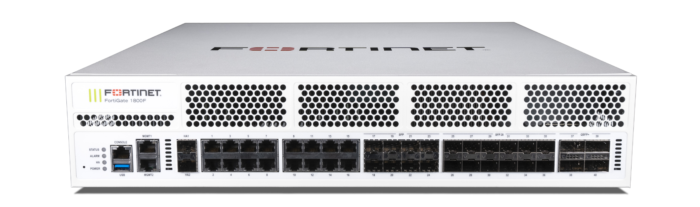

FortiGate 1800F FortiGate 1801F
Hardware Accelerated GE RJ45 Ports 16
Hardware Accelerated GE SFP Slots 8
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots 12
Hardware Accelerated 40GE QSFP+ Slots 4
10 GE SFP+ / GE SFP HA Slots 2
GE RJ45 Management Ports 2
Included Transceivers 2x SFP+ (SR 10GE)
Onboard Storage 2x 1TB NVMe SSD
USB 3.0 Port 1
RJ45 Console Port 1
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 198 / 197 / 140 Gbps
Firewall Latency (64 byte UDP packets) 3.22 μs
Firewall Throughput (Packets Per Second) 210 Mpps
Concurrent Sessions (TCP) 12 Million
New Sessions/Second (TCP) 750,000
Firewall Policies 100,000
IPsec VPN Throughput (512 byte) 55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 20,000
Client-to-Gateway IPsec VPN Tunnels 100,000
SSL-VPN Throughput 11 Gbps
Concurrent SSL-VPN Users (Recommended Maximum) 10,000
SSL Inspection Throughput (IPS, avg. HTTPS) 17 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 9,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 1.3 Million
Application Control Throughput (HTTP 64K) 34 Gbps
Virtual Domains (Default / Maximum) 10 / 250
High Availability Configurations Active-Active, Active-Passive, Clustering
IPS Throughput 13 Gbps
NGFW Throughput 11 Gbps
Threat Protection Throughput 9.1 Gbps
