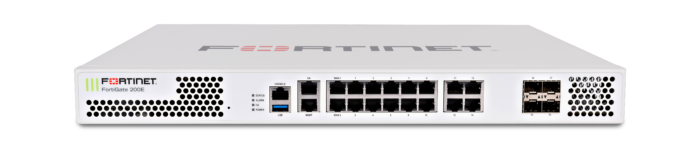

 | FortiGate 200E | FortiGate 201E | |
| GE RJ45 Ports | 14 | 14 | |
| GE RJ45 Management/HA Ports | 2 | 2 | |
| GE SFP Slots | 4 | 4 | |
| GE RJ45 WAN Ports | 2 | 2 | |
| Internal Storage | — | 1x 480 GB SSD | |
| USB Port | 1 | ||
| RJ45 Console Port | 1 | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 20 / 20 / 9 Gbps | ||
| Firewall Latency (64 byte UDP packets) | 3 μs | ||
| Firewall Throughput (Packets Per Second) | 13.5 Mpps | ||
| Concurrent Sessions (TCP) | 2 Million | ||
| New Sessions/Second (TCP) | 135,000 | ||
| Firewall Policies | 10,000 | ||
| IPsec VPN Throughput (512 byte) | 7.2 Gbps | ||
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 | ||
| Client-to-Gateway IPsec VPN Tunnels | 10,000 | ||
| SSL-VPN Throughput | 900 Mbps | ||
| Concurrent SSL-VPN Users (Recommended Maximum) | 500 | ||
| SSL Inspection Throughput (IPS, avg. HTTPS) | 820 Mbps | ||
| SSL Inspection CPS (IPS, avg. HTTPS) | 1,000 | ||
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 240,000 | ||
| Application Control Throughput (HTTP 64K) | 3.5 Gbps | ||
| Virtual Domains (Default / Maximum) | 10 / 10 | ||
| High Availability Configurations | Active-Active, Active-Passive, Clustering | ||
| IPS Throughput | 2.2 Gbps | ||
| NGFW Throughput | 1.8 Gbps | ||
| Threat Protection Throughput | 1.2 Gbps | ||
