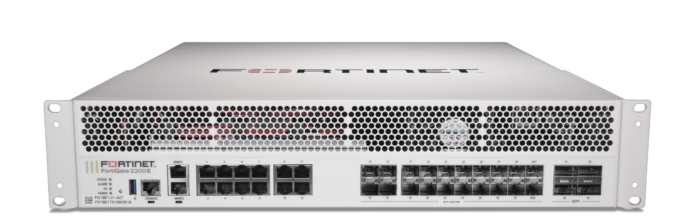

 | FortiGate 2200E | FortiGate 2201E | |
| Hardware Accelerated 40 GE QSFP+ Slots | 4 | ||
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots | 2 | ||
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 18 | ||
| Hardware Accelerated GE RJ45 Ports | 12 | ||
| GE RJ45 Management Ports | 2 | ||
| Included Transceivers | 2x SFP+ (SR 10GE) | ||
| Onboard Storage | — | 2x 1 TB SSD | |
| USB Port | 1 | ||
| RJ45 Console Port | 1 | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 158 / 155 / 100 Gbps | ||
| Firewall Latency (64 byte UDP packets) | 3.09 μs | ||
| Firewall Throughput (Packets Per Second) | 150 Mpps | ||
| Concurrent Sessions (TCP) | 24 Million | ||
| New Sessions/Second (TCP) | 500,000 | ||
| Firewall Policies | 100,000 | ||
| IPsec VPN Throughput (512 byte) | 98 Gbps | ||
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 | ||
| Client-to-Gateway IPsec VPN Tunnels | 100,000 | ||
| SSL-VPN Throughput | 10 Gbps | ||
| Concurrent SSL-VPN Users (Recommended Maximum) | 30,000 | ||
| SSL Inspection Throughput (IPS, avg. HTTPS) | 17 Gbps | ||
| SSL Inspection CPS (IPS, avg. HTTPS) | 9,500 | ||
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 2.5 Million | ||
| Application Control Throughput (HTTP 64K) | 52 Gbps | ||
| Virtual Domains (Default / Maximum) | 10 / 250 | ||
| High Availability Configurations | Active-Active, Active-Passive, Clustering | ||
| IPS Throughput | 16.5 Gbps | ||
| NGFW Throughput | 13.5 Gbps | ||
| Threat Protection Throughput | 11 Gbps | ||
