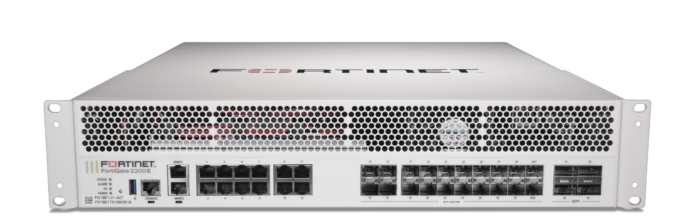

FortiGate 2200E FortiGate 2201E
Hardware Accelerated 40 GE QSFP+ Slots 4
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots 2
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots 18
Hardware Accelerated GE RJ45 Ports 12
GE RJ45 Management Ports 2
Included Transceivers 2x SFP+ (SR 10GE)
Onboard Storage 2x 1 TB SSD
USB Port 1
RJ45 Console Port 1
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 158 / 155 / 100 Gbps
Firewall Latency (64 byte UDP packets) 3.09 μs
Firewall Throughput (Packets Per Second) 150 Mpps
Concurrent Sessions (TCP) 24 Million
New Sessions/Second (TCP) 500,000
Firewall Policies 100,000
IPsec VPN Throughput (512 byte) 98 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 20,000
Client-to-Gateway IPsec VPN Tunnels 100,000
SSL-VPN Throughput 10 Gbps
Concurrent SSL-VPN Users (Recommended Maximum) 30,000
SSL Inspection Throughput (IPS, avg. HTTPS) 17 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 9,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 2.5 Million
Application Control Throughput (HTTP 64K) 52 Gbps
Virtual Domains (Default / Maximum) 10 / 250
High Availability Configurations Active-Active, Active-Passive, Clustering
IPS Throughput 16.5 Gbps
NGFW Throughput 13.5 Gbps
Threat Protection Throughput 11 Gbps
