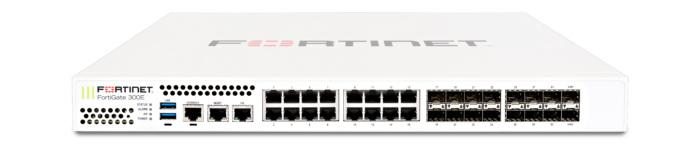

 | FortiGate 300E | FortiGate 301E | |
| GE RJ45 Interfaces | 16 | 16 | |
| GE RJ45 Management Ports | 2 | 2 | |
| GE SFP Slots | 16 | 16 | |
| Included Transceivers | 2x SFP (SX 1 GE) | 2x SFP (SX 1 GE) | |
| Internal Storage | — | 2x 240 GB SSD | |
| USB Port | 2 | ||
| RJ45 Console Port | 1 | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 32 / 32 / 20 Gbps | ||
| Firewall Latency (64 byte UDP packets) | 3 μs | ||
| Firewall Throughput (Packets Per Second) | 30 Mpps | ||
| Concurrent Sessions (TCP) | 4 Million | ||
| New Sessions/Second (TCP) | 300,000 | ||
| Firewall Policies | 10,000 | ||
| IPsec VPN Throughput (512 byte) | 20 Gbps | ||
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 | ||
| Client-to-Gateway IPsec VPN Tunnels | 50,000 | ||
| SSL-VPN Throughput | 2.5 Gbps | ||
| Concurrent SSL-VPN Users (Recommended Maximum) | 5,000 | ||
| SSL Inspection Throughput (IPS, avg. HTTPS) | 3.9 Gbps | ||
| SSL Inspection CPS (IPS, avg. HTTPS) | 2,500 | ||
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 340,000 | ||
| Application Control Throughput (HTTP 64K) | 7 Gbps | ||
| Virtual Domains (Default / Maximum) | 10 / 10 | ||
| High Availability Configurations | Active-Active, Active-Passive, Clustering | ||
| IPS Throughput | 5 Gbps | ||
| NGFW Throughput | 3.5 Gbps | ||
| Threat Protection Throughput | 3 Gbps | ||
