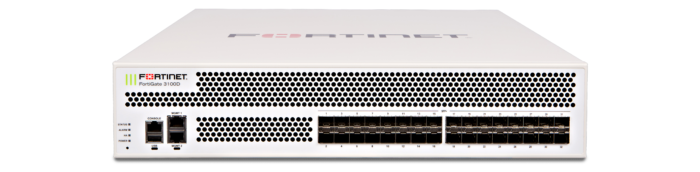

FortiGate 3100D
10 GE SFP+ / GE SFP Slots32
GE RJ45 Management Ports2
Included Transceivers2x SFP+ (SR 10GE)
Onboard Storage1x 480 GB SSD
USB Ports (Client / Server)1 / 1
RJ45 Console Port1
Firewall Throughput (1518 / 512 / 64 byte UDP packets)80 / 80 / 50 Gbps
Firewall Latency (64 byte UDP packets)3 μs
Firewall Throughput (Packets Per Second)75 Mpps
Concurrent Sessions (TCP)50 Million
New Sessions/Second (TCP)400,000
Firewall Policies200,000
IPsec VPN Throughput (512 byte)50 Gbps
Gateway-to-Gateway IPsec VPN Tunnels40,000
Client-to-Gateway IPsec VPN Tunnels200,000
SSL-VPN Throughput8 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)30,000
SSL Inspection Throughput (IPS, avg. HTTPS)16 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)10,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)3.5 Million
Application Control Throughput (HTTP 64K)40 Gbps
Virtual Domains (Default / Maximum)10 / 500
High Availability ConfigurationsActive-Active, Active-Passive, Clustering
IPS Throughput22 Gbps
NGFW Throughput18 Gbps
Threat Protection Throughput13 Gbps
