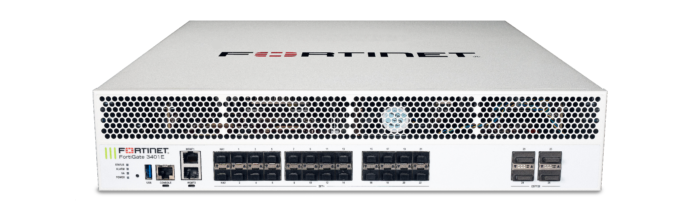

FortiGate 3400E/-DC | FortiGate 3401E/-DC | |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 4 | ||
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 24 | ||
| GE RJ45 Management / HA Ports | 2 | ||
| Included Transceivers | 2x SFP+ (SR 10 GE) | ||
| Onboard Storage | — | 2x 2 TB SSD | |
| USB Ports (Client / Server) | 1 / 1 | ||
| RJ45 Console Port | 1 | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 240 / 238 / 150 Gbps | ||
| Firewall Latency (64 byte UDP packets) | 3.33 μs | ||
| Firewall Throughput (Packets Per Second) | 225 Mpps | ||
| Concurrent Sessions (TCP) | 50 Million | ||
| New Sessions/Second (TCP) | 460,000 | ||
| Firewall Policies | 200,000 | ||
| IPsec VPN Throughput (512 byte) | 140 Gbps | ||
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 | ||
| Client-to-Gateway IPsec VPN Tunnels | 200,000 | ||
| SSL-VPN Throughput | 11 Gbps | ||
| Concurrent SSL-VPN Users (Recommended Maximum) | 30,000 | ||
| SSL Inspection Throughput (IPS, avg. HTTPS) | 30 Gbps | ||
| SSL Inspection CPS (IPS, avg. HTTPS) | 14,000 | ||
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 4,9 Million | ||
| Application Control Throughput (HTTP 64K) | 86 Gbps | ||
| Virtual Domains (Default / Maximum) | 10 / 500 | ||
| High Availability Configurations | Active-Active, Active-Passive, Clustering | ||
| IPS Throughput | 44 Gbps | ||
| NGFW Throughput | 34 Gbps | ||
| Threat Protection Throughput | 23 Gbps | ||
