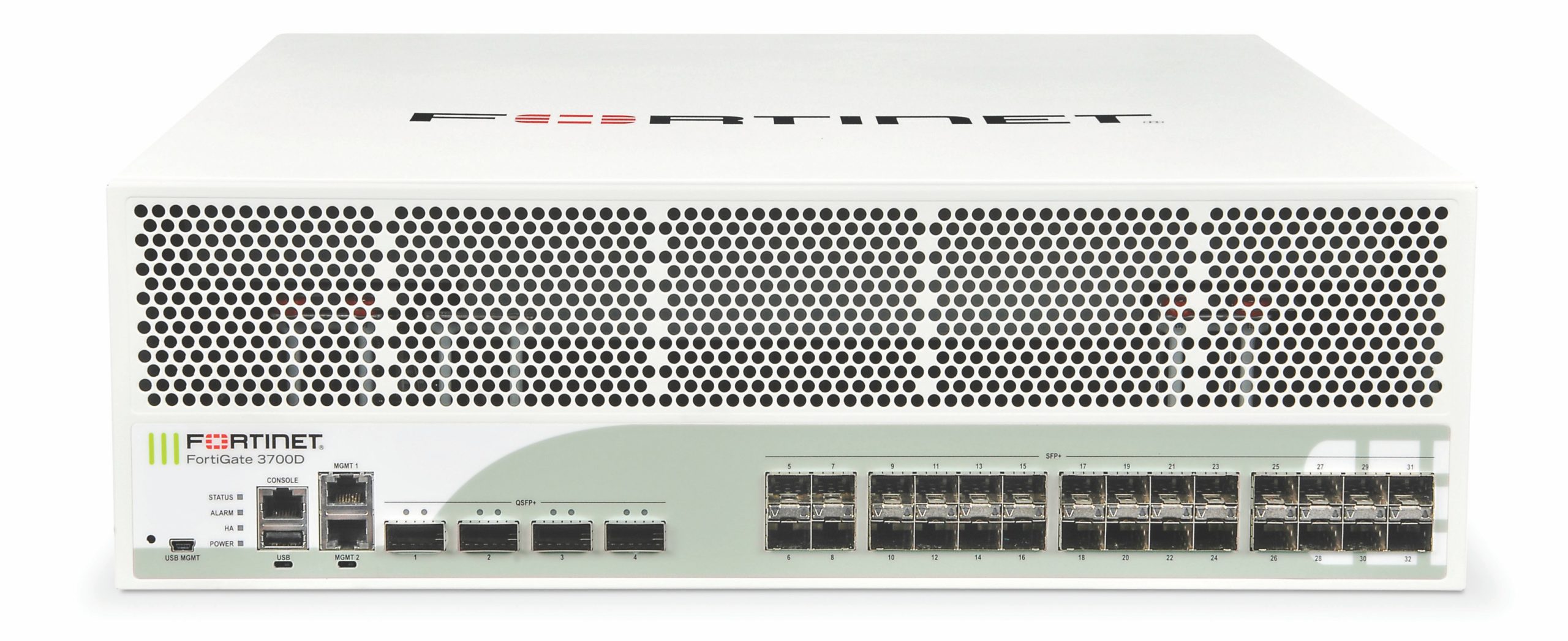

 | FortiGate 3700D | FortiGate 3700D-DC | |
| 40 GE QSFP Slots | 4 | ||
| 10 GE SFP+ / GE SFP Slots | 20 | ||
| 10 GE SFP+ Slots (Ultra-low Latency) | 8 | ||
| GE RJ45 Management Ports | 2 | ||
| Included Transceivers | 2x SFP+ (SR 10 GE) | ||
| Onboard Storage | 2x 2 TB SSD | ||
| USB Ports (Client / Server) | 1 / 1 | ||
| RJ45 Console Port | 1 | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 160 / 160 / 110 Gbps | ||
| Firewall Latency (64 byte UDP packets) | 2 μs | ||
| Firewall Throughput (Packets Per Second) | 165 Mpps | ||
| Concurrent Sessions (TCP) | 50 Million | ||
| New Sessions/Second (TCP) | 400,000 | ||
| Firewall Policies | 200,000 | ||
| IPsec VPN Throughput (512 byte) | 100 Gbps | ||
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 | ||
| Client-to-Gateway IPsec VPN Tunnels | 200,000 | ||
| SSL-VPN Throughput | 10 Gbps | ||
| Concurrent SSL-VPN Users (Recommended Maximum) | 30,000 | ||
| SSL Inspection Throughput (IPS, avg. HTTPS) | 15,5 Gbps | ||
| SSL Inspection CPS (IPS, avg. HTTPS) | 8,500 | ||
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 3,5 Million | ||
| Application Control Throughput (HTTP 64K) | 40 Gbps | ||
| Virtual Domains (Default / Maximum) | 10 / 500 | ||
| High Availability Configurations | Active-Active, Active-Passive, Clustering | ||
| IPS Throughput | 28 Gbps | ||
| NGFW Throughput | 20 Gbps | ||
| Threat Protection Throughput | 13 Gbps | ||
