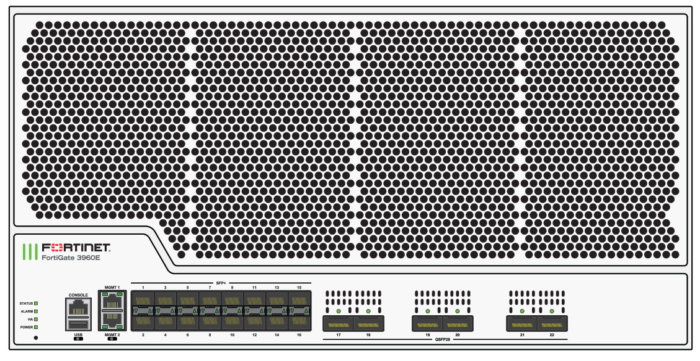

FortiGate 3960E/-DC
40/100 GE QSFP+/QSFP28 Slots6
1/10 GE SFP/SFP+Slots16
GE RJ45 Management Ports2
Included Transceivers2x SFP+ (SR 10 GE)
Onboard Storage
USB Ports1
RJ45 Console Port1
Firewall Throughput (1518 / 512 / 64 byte UDP packets)620 Gbps/ 610 Gbps/ 370 Gbps
Firewall Latency (64 byte UDP packets)3 μs
Firewall Throughput (Packets Per Second)555 Mpps
Concurrent Sessions (TCP)160 Million
New Sessions/Second (TCP)550,000
Firewall Policies200,000
IPsec VPN Throughput (512 byte)280 Gbps
Gateway-to-Gateway IPsec VPN Tunnels40,000
Client-to-Gateway IPsec VPN Tunnels200,000
SSL-VPN Throughput9 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)30,000
SSL Inspection Throughput (IPS, avg. HTTPS)23 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)14,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)12 Million
Application Control Throughput (HTTP 64K)40 Gbps
Virtual Domains (Default / Maximum)10 / 500
High Availability ConfigurationsActive-Active, Active-Passive, Clustering
IPS Throughput30 Gbps
NGFW Throughput22 Gbps
Threat Protection Throughput13,5 Gbps
