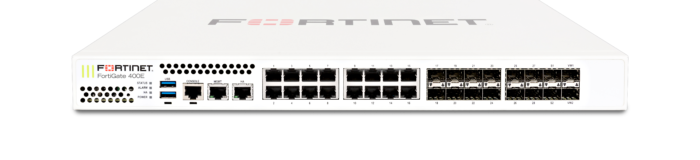

FortiGate 400EFortiGate 401E/-DC
GE RJ45 Interfaces1616
GE RJ45 Management Ports22
GE SFP Slots1616
Included Transceivers2x SFP (SX 1 GE)2x SFP (SX 1 GE)
Internal Storage2x 240 GB SSD
USB Port2
RJ45 Console Port1
Firewall Throughput (1518 / 512 / 64 byte UDP packets)32 / 32 / 24 Gbps
Firewall Latency (64 byte UDP packets)2.14 μs
Firewall Throughput (Packets Per Second)36 Mpps
Concurrent Sessions (TCP)4 Million
New Sessions/Second (TCP)450,000
Firewall Policies10,000
IPsec VPN Throughput (512 byte)20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels2,000
Client-to-Gateway IPsec VPN Tunnels50,000
SSL-VPN Throughput4.5 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)5,000
SSL Inspection Throughput (IPS, avg. HTTPS)4.8 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)4,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)300,000
Application Control Throughput (HTTP 64K)12 Gbps
Virtual Domains (Default / Maximum)10 / 10
High Availability ConfigurationsActive-Active, Active-Passive, Clustering
IPS Throughput7.8 Gbps
NGFW Throughput6 Gbps
Threat Protection Throughput5 Gbps
