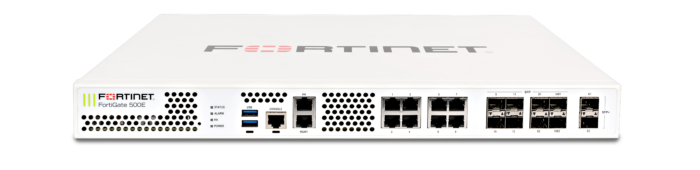

FortiGate 500E FortiGate 501E
GE RJ45 Interfaces 8 8
GE RJ45 Management Ports 2 2
GE SFP Slots 8 8
10 GE SFP+ Slots 2 2
Included Transceivers 2x SFP (SX 1 GE) 2x SFP (SX 1 GE)
Internal Storage 2x 240 GB SSD
USB Port 2
RJ45 Console Port 1
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 36 / 36 / 22 Gbps
Firewall Latency (64 byte UDP packets) 2 μs
Firewall Throughput (Packets Per Second) 33 Mpps
Concurrent Sessions (TCP) 8 Million
New Sessions/Second (TCP) 300,000
Firewall Policies 10,000
IPsec VPN Throughput (512 byte) 20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
Client-to-Gateway IPsec VPN Tunnels 50,000
SSL-VPN Throughput 5 Gbps
Concurrent SSL-VPN Users (Recommended Maximum) 10,000
SSL Inspection Throughput (IPS, avg. HTTPS) 5.7 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 3,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 800,000
Application Control Throughput (HTTP 64K) 14 Gbps
Virtual Domains (Default / Maximum) 10 / 10
High Availability Configurations Active-Active, Active-Passive, Clustering
IPS Throughput 7.9 Gbps
NGFW Throughput 5 Gbps
Threat Protection Throughput 4.7 Gbps
