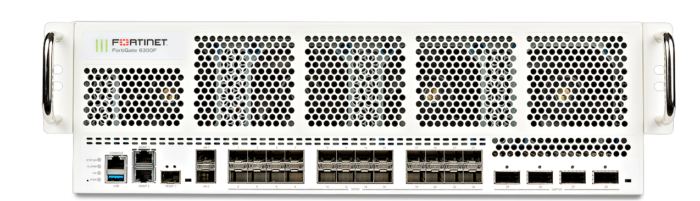

 | FortiGate 6300F/6301F | |
| 40/100 GE QSFP28 Slots | 4 | |
| 1/10/25 GE SFP28 Slots | 24 | |
| 10 GE SFP+ Slots | 3 | |
| GE RJ45 Management Ports | 2 | |
| Included Transceivers | 2x SFP+ (SR 10GE) | |
| Onboard Storage | 2x 1 TB NVMe (for 6301F and 6501F only) | |
| USB Port | 1 | |
| RJ45 Console Port | 1 | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 239 / 238 / 135 Gbps | |
| Firewall Latency (64 byte UDP packets) | 5 μs | |
| Firewall Throughput (Packets Per Second) | 202.5 Mpps | |
| Concurrent Sessions (TCP) | 120 Million | |
| New Sessions/Second (TCP) | 2 Million | |
| Firewall Policies | 200,000 | |
| IPsec VPN Throughput (512 byte) | 96 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 16,000 | |
| Client-to-Gateway IPsec VPN Tunnels | 90,000 | |
| SSL-VPN Throughput | 9 Gbps | |
| Concurrent SSL-VPN Users (Recommended Maximum) | 30,000 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 66 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 30,000 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 10 Million | |
| Application Control Throughput (HTTP 64K) | 150 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 500 | |
| High Availability Configurations | Active-Active, Active-Passive, Clustering | |
| IPS Throughput | 110 Gbps | |
| NGFW Throughput | 90 Gbps | |
| Threat Protection Throughput | 60 Gbps |
