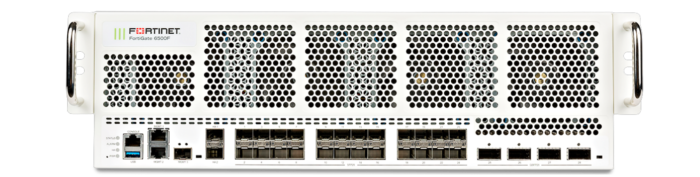

FortiGate 6500F/6501F
40/100 GE QSFP28 Slots 4
1/10/25 GE SFP28 Slots 24
10 GE SFP+ Slots 3
GE RJ45 Management Ports 2
Included Transceivers 2x SFP+ (SR 10GE)
Onboard Storage 2x 1 TB NVMe (for 6301F and 6501F only)
USB Port 1
RJ45 Console Port 1
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 239 / 238 / 135 Gbps
Firewall Latency (64 byte UDP packets) 5 μs
Firewall Throughput (Packets Per Second) 202.5 Mpps
Concurrent Sessions (TCP) 200 Million
New Sessions/Second (TCP) 3 Million
Firewall Policies 200,000
IPsec VPN Throughput (512 byte) 160 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 16,000
Client-to-Gateway IPsec VPN Tunnels 90,000
SSL-VPN Throughput 9 Gbps
Concurrent SSL-VPN Users (Recommended Maximum) 30,000
SSL Inspection Throughput (IPS, avg. HTTPS) 110 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 50,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 18 Million
Application Control Throughput (HTTP 64K) 220 Gbps
Virtual Domains (Default / Maximum) 10 / 500
High Availability Configurations Active-Active, Active-Passive, Clustering
IPS Throughput 170 Gbps
NGFW Throughput 150 Gbps
Threat Protection Throughput 100 Gbps
