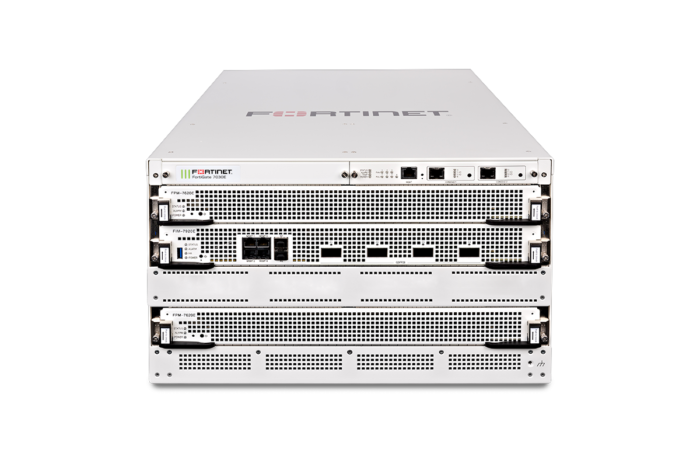

FortiGate 7030E
Fortinet Processor Module (FPM) Slots 2
Fortinet Interface Module (FIM) Slots 2
Shelf Manager 1
Height x Width x Length (mm) 266.7 x 440 x 650
Weight 134.9 lbs (61.3 kg)
Form Factor (supports EIA/non-EIA standards) 6 RU
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 155 / 155 / 155 Gbps
Firewall Latency (64 byte UDP packets) 7 μs
Firewall Throughput (Packets Per Second) 220 Mpps
Concurrent Sessions (TCP) 160 Million
New Sessions/Second (TCP) 900,000
Firewall Policies 200,000
IPsec VPN Throughput (512 byte) 40 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 16,000
Client-to-Gateway IPsec VPN Tunnels 64,000
SSL-VPN Throughput 15 Gbps
Concurrent SSL-VPN Users (Recommended Maximum) 48,000
SSL Inspection Throughput (IPS, avg. HTTPS) 39.9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 32,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 12 Million
Application Control Throughput (HTTP 64K) 65 Gbps
Virtual Domains (Default / Maximum) 10 / 500
High Availability Configurations Active-Active, Active-Passive
IPS Throughput (HTTP / Enterprise Mix) 90 / 60 Gbps
NGFW Throughput 50 Gbps
Threat Protection Throughput 35 Gbps

Сетевые платы FIM-7901E, FIM-7904E, FIM-7910E и FIM-7920E:

FIM-7901E FIM-7904E FIM-7910E FIM-7920E
Network Interfaces 32x GE/10 GE SFP/+ 8x 40 GE QSFP+ 4x 100 GE CFP2 4x 100 GE QSFP28
Base Channel Interfaces 2x 10 GE SFP+ 2x 10 GE SFP+ 2x 10 GE SFP+ 2x 10 GE SFP+
Management Interfaces 4x GE RJ45 4x GE RJ45 4x GE RJ45 4x GE RJ45
Included Transceivers 2x SFP+ SR 2x SFP+ SR 2x SFP+ SR 2x SFP+ SR
Power Consumption (Average / Maximum) 260 / 450 W 260 / 450 W 260 / 450 W 410 / 460 W
Heat Dissipation 1531 BTU/h 1531 BTU/h 1531 BTU/h 1565 BTU/h
Operating Temperature 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C) -31–158°F (-35–70°C) -31–158°F (-35–70°C) -31–158°F (-35–70°C)
Humidity 20–90% non-condensing 20–90% non-condensing 20–90% non-condensing 20–90% non-condensing
