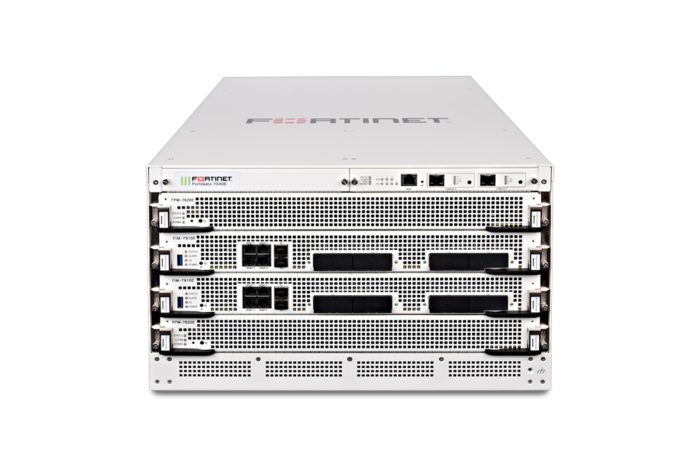

FortiGate 7040E
Fortinet Processor Module (FPM) Slots2
Fortinet Interface Module (FIM) Slots2
Shelf Manager1
Height x Width x Length (mm)266.7 x 440 x 650
Weight153.3 lbs (69.6 kg)
Form Factor (supports EIA/non-EIA standards)8 RU
Firewall Throughput (1518 / 512 / 64 byte UDP packets)315 / 310 / 200 Gbps
Firewall Latency (64 byte UDP packets)7 μs
Firewall Throughput (Packets Per Second)300 Mpps
Concurrent Sessions (TCP)160 Million
New Sessions/Second (TCP)950,000
Firewall Policies200,000
IPsec VPN Throughput (512 byte)100 Gbps
Gateway-to-Gateway IPsec VPN Tunnels16,000
Client-to-Gateway IPsec VPN Tunnels64,000
SSL-VPN Throughput15 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)48,000
SSL Inspection Throughput (IPS, avg. HTTPS)39.9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)32,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)12 Million
Application Control Throughput (HTTP 64K)80 Gbps
Virtual Domains (Default / Maximum)10 / 500
High Availability ConfigurationsActive-Active, Active-Passive
IPS Throughput (HTTP / Enterprise Mix)140 / 60 Gbps
NGFW Throughput50 Gbps
Threat Protection Throughput40 Gbps

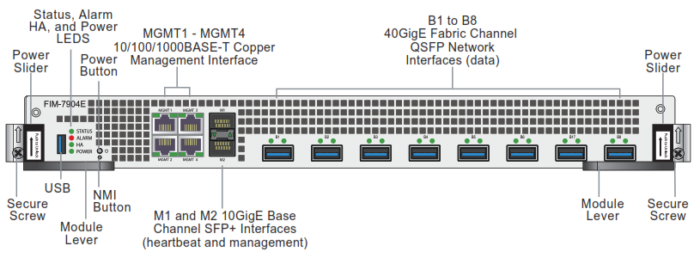

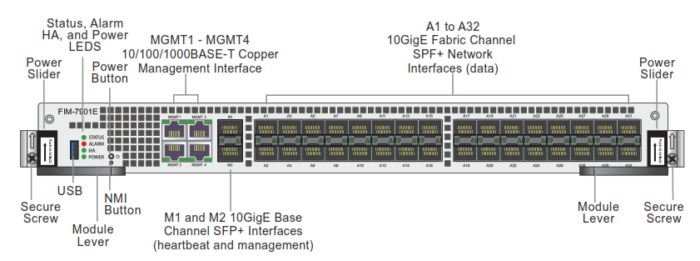

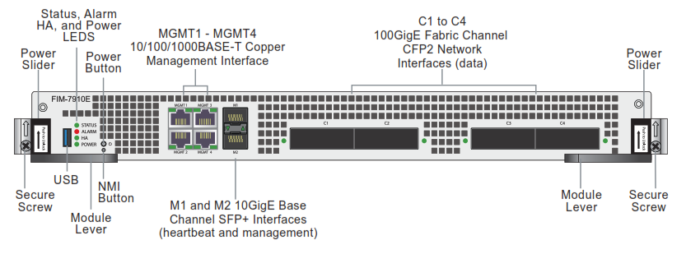

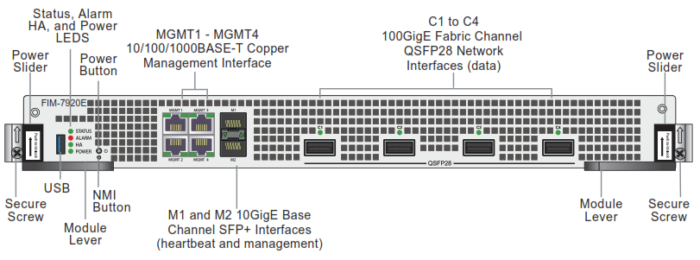

Сетевые платы FIM-7901E, FIM-7904E, FIM-7910E и FIM-7920E:

FIM-7901EFIM-7904EFIM-7910EFIM-7920E
Network Interfaces32x GE/10 GE SFP/+8x 40 GE QSFP+4x 100 GE CFP24x 100 GE QSFP28
Base Channel Interfaces2x 10 GE SFP+2x 10 GE SFP+2x 10 GE SFP+2x 10 GE SFP+
Management Interfaces4x GE RJ454x GE RJ454x GE RJ454x GE RJ45
Included Transceivers2x SFP+ SR2x SFP+ SR2x SFP+ SR2x SFP+ SR
Power Consumption (Average / Maximum)260 / 450 W260 / 450 W260 / 450 W410 / 460 W
Heat Dissipation1531 BTU/h1531 BTU/h1531 BTU/h1565 BTU/h
Operating Temperature32–104°F (0–40°C)32–104°F (0–40°C)32–104°F (0–40°C)32–104°F (0–40°C)
Storage Temperature-31–158°F (-35–70°C)-31–158°F (-35–70°C)-31–158°F (-35–70°C)-31–158°F (-35–70°C)
Humidity20–90% non-condensing20–90% non-condensing20–90% non-condensing20–90% non-condensing
